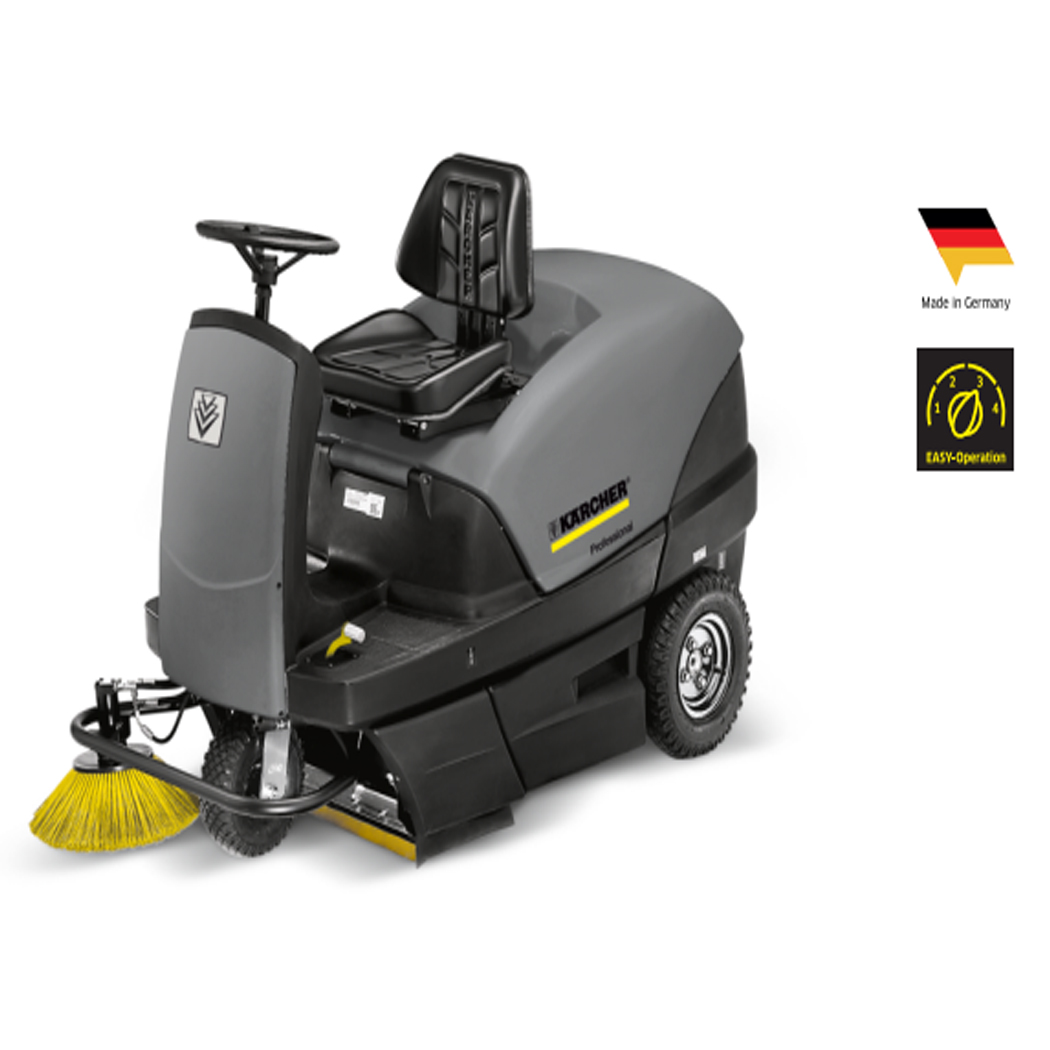

KM 100/100 R BP
Ride-On Sweeper
Efficient. Comfortable. Reliable.
The Kärcher KM 100/100 R Bp is a comfortable, modern ride-on sweeper designed for professional indoor and outdoor cleaning. Capable of covering areas between 6,000 m²/h to 7,800 m²/h, this battery-powered sweeper offers emission-free operation, an automatic filter cleaning system, and outstanding maneuverability — making it ideal for warehouses, parking areas, and industrial premises.
Important Note:
Users must receive training before operating this machine.
Contact Classic Absorption and Water Services today to get free quotation. As an official partner of Karcher, we bring you the best in high-quality cleaning technology.

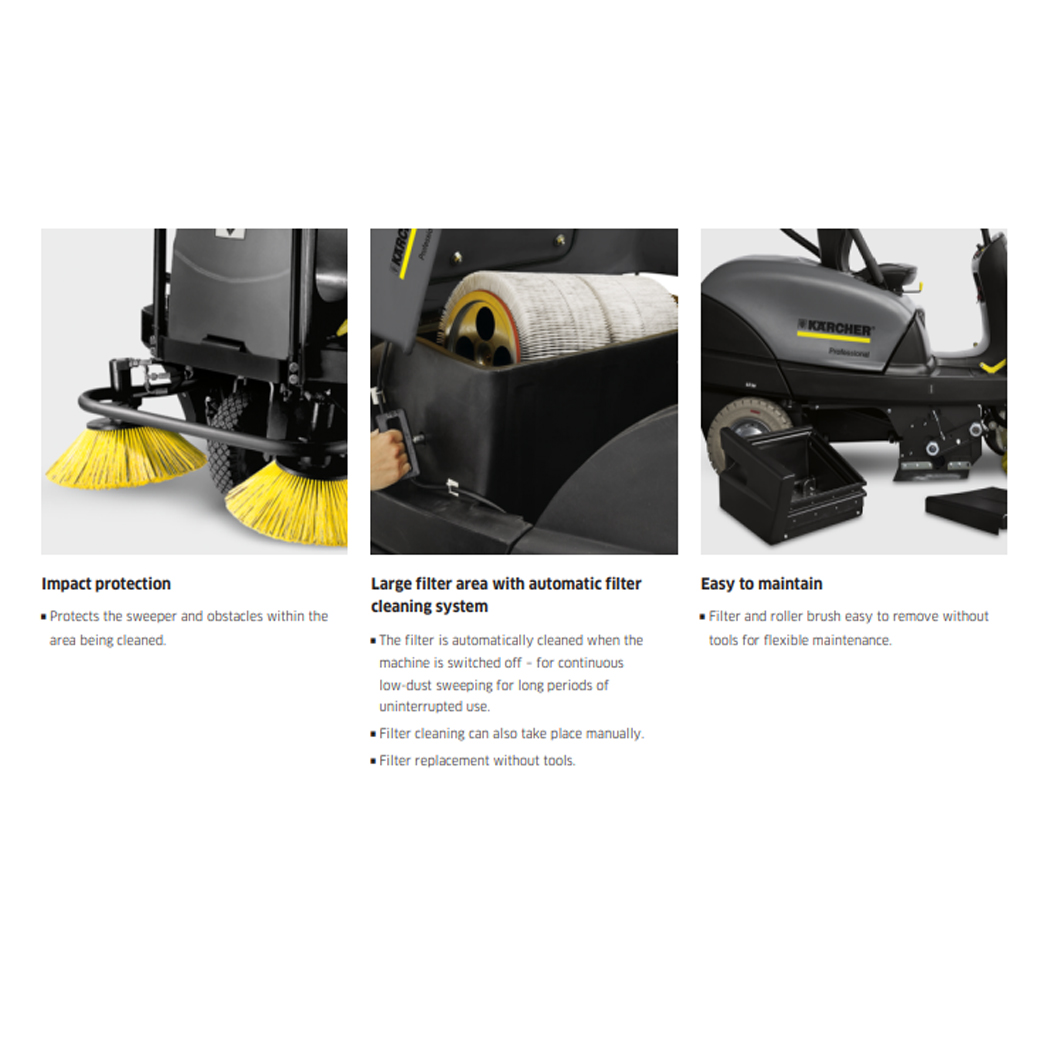

Key Features:
KM 100/100 R BP
Impact Protection:
Protects both the machine and obstacles in the cleaning environment.Large Filter Area with Automatic Cleaning:
Automatic filter cleaning when the machine is switched off.
Allows continuous low-dust sweeping for long, uninterrupted operation.
Manual filter cleaning also possible.
Tool-free filter replacement.
Easy Maintenance:
Tool-free removal of filter and roller brush for quick maintenance.
Emission-Free, Electric Traction Drive:
Clean, quiet, and efficient operation indoors and outdoors.Additional Functionalities:
Forwards and backwards traction drive
Sweeping function can be switched off
Coarse dirt flap
Suction volume regulation
Overhead sweeping principle
Non-marking wheels
Battery indicator and elapsed time counter included
Technical Data:
| Description | Value |
|---|---|
| Order No. | 1.280-103.0 |
| EAN Code | 4039784468573 |
| Traction Drive | DC motor |
| Drive – Performance | 24 V / 2.1 kW |
| Drive Type | Electric |
| Max. Area Performance | 6000 m²/h |
| Max. Area Performance (with 2 side brushes) | 7800 m²/h |
| Working Width (without/with 1/with 2 side brushes) | 700 / 1000 / 1300 mm |
| Battery Capacity | 240 Ah |
| Battery Voltage | 24 V |
| Battery Runtime (max.) | 2.5 h |
| Waste Container Capacity | 100 l |
| Climbing Ability | 18 % |
| Working Speed | 6 km/h |
| Filter Area | 6 m² |
| Weight (with accessories) | 320 kg |
| Weight (ready to use) | 300 kg |
| Dimensions (L × W × H) | 2006 × 1005 × 1343 mm |
Standard Equipment:
Polyester Round Filter
Manual and Automatic Filter Cleaning
Main Sweeper Roller, Floating
Suction Volume Regulation
Coarse Dirt Flap
Overhead Sweeping Principle
Forward and Backward Traction Drive
Suction Function
For Outdoor and Indoor Use
Battery Indicator
Elapsed Time Counter
Switchable Sweeping Function
Non-marking Wheels

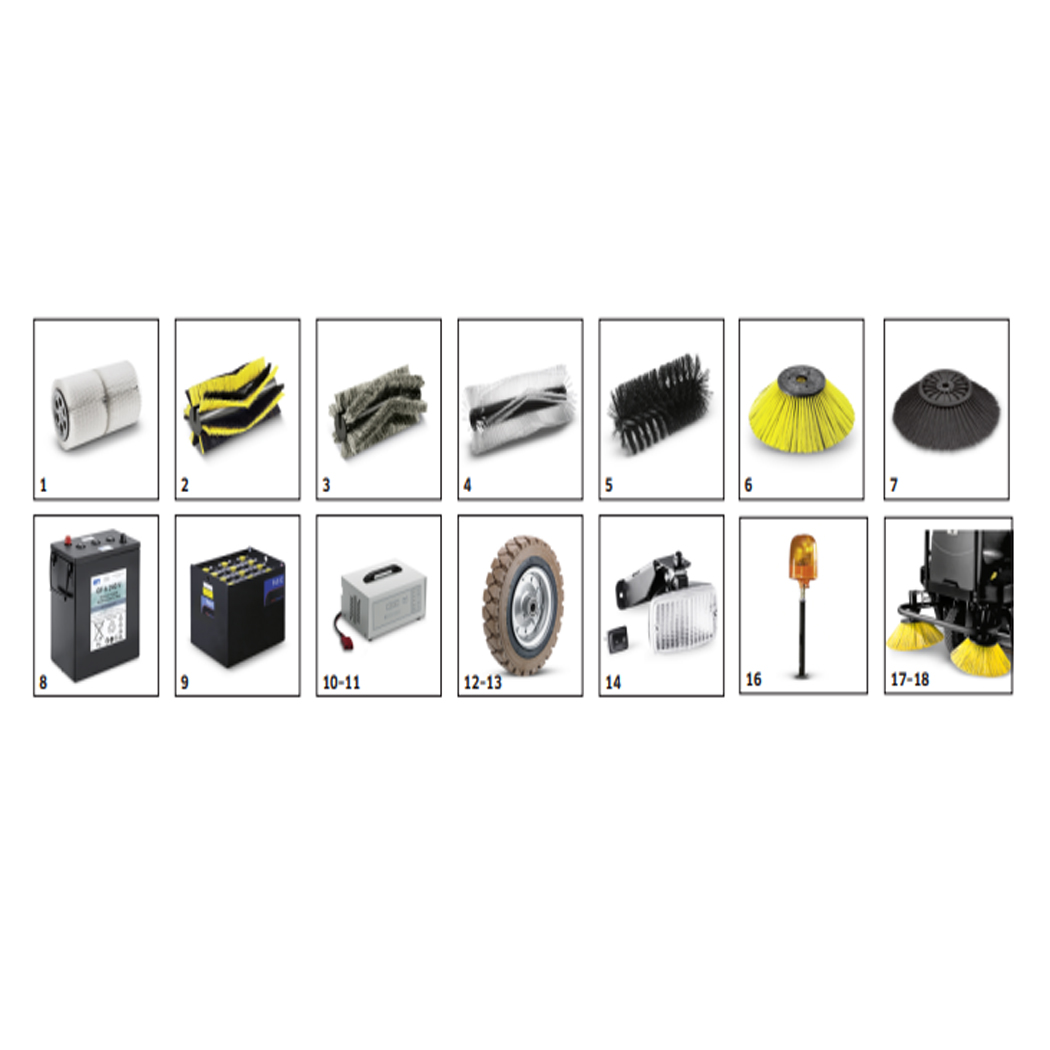

Available Accessories:
KM 100/100 R BP Accessories
Filters
Round Filter (moisture-proof, washable) — Order No. 6.414-532.0
Main Sweeper Rollers
Standard Roller Brush — Order No. 6.906-375.0
Soft/Natural Bristles Roller (for fine dust) — Order No. 6.906-533.0
Hard Roller (for stubborn dirt outdoors) — Order No. 6.906-532.0
Antistatic Roller (for static-prone areas) — Order No. 6.906-534.0
Side Brushes
Standard Side Brush — Order No. 6.905-986.0
Soft Side Brush (for fine dust, indoors/outdoors) — Order No. 6.906-133.0
Traction Batteries
Battery — Order No. 6.654-119.0 (4 required)
Battery with Central Filling System — Order No. 6.654-112.0
Chargers
For 6.654-119.0 — Order No. 6.654-120.0
For 6.654-112.0 — Order No. 6.654-107.0
Tyres (Puncture-proof)
Solid Rubber, Non-marking Set — Order No. 2.641-129.7
Rear Wheel (Single) — Order No. 6.435-698.0
Mounting Kits
Working Lights — Order No. 2.640-551.0
Vacuum Cleaner Attachment — Order No. 2.641-448.7
Warning Beacon (Flashing) — Order No. 2.643-886.0
Left Side Brushes
ABS 2. Side Brush Left — Order No. 2.851-050.0
(Older units up to serial no. 11857) — Order No. 2.640-284.0
Protective Roof with 360° Warning Beacon — Order No. 2.640-496.7
